Gas shuttle system

Gas shuttle system

for handling strongly oxidizing or fuming acids and alkalis

Preis anfragen

Mit * gekennzeichnete Felder sind Pflichtfelder.
  • 0204-510
  • upon request
  • is suitable for use with Pump tube PP 41 and Nozzle PP
Description: Harmful gases and vapours remain practically in a closed system when filling...more
Product information "Gas shuttle system"

Version Overall system :

Order no.Description
0204-250 Emission protection-Drum adapter:
PP
0204-380

Nozzle PP/FPM, G 1 1/4

0204-297

Nozzles-Outlet spout PP

0373-153

Gas displacement hose:
PVC-Hose DN 9

0204-511*

Emission protection-Hose with
connection flange PVDF

* Additional price: emission protection-Hose with connection flange PVDF (0204-511) conducts rising gases back into the container in the case of seal-less pumping stations


Description:

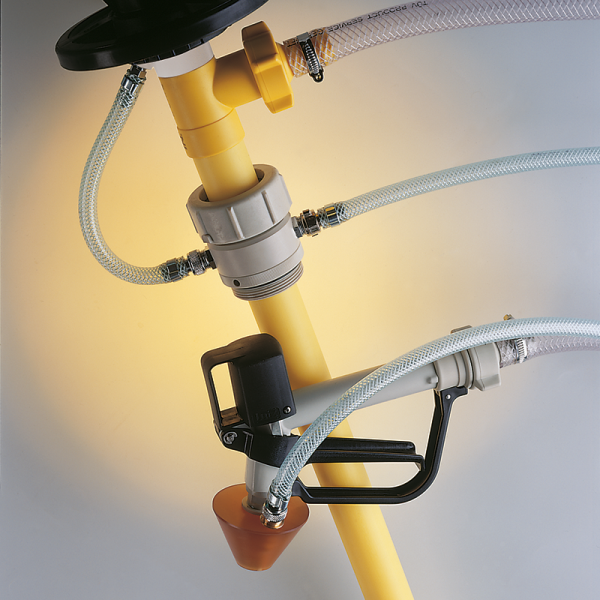

Harmful gases and vapours remain practically in a closed system when filling or transferring hazardous liquids and provide the necessary pressure equalisation themselves. The sealing plug adapts to different Drum- and container openings (D = 40-75 mm). In conjunction with a Nozzle, it enables safe decanting, even into smaller containers. A non-return valve integrated in the gas displacement line prevents the gases from flowing back in the event of pump standstill or drum change.

  • consisting of: Conical sealing plug, non-return valve for gas displacement line, screw-in fittings

Properties & advantages

  • Prevents the escape of harmful gases
  • Protects against oxidizing emissions
  • Backflow of trapped gases during pump standstill is stopped by check valve
Technical data
▼ EIGENSCHAFTEN | PROPERTIES | EIGENSCHAPPEN ▼
Produktgruppe: Fasspumpen / Containerpumpen
Accessories group: Mounts / Suspensions

* The maximum flow rate is a value determined by means of a test bench and measured with water at a medium temperature of approx. 20 °C. The measurement is carried out at the pressure joint of the pump, without hose, nozzle or flow meter. The achievable flow rate in use is lower and depends on the individual application, the liquid properties and the configuration of the pump. The max. delivery head also depends on the pump design, motor and fluid. The viscosity values are determined with oil.

** Test assembly: Medium water / diesel, flow in preferred direction, settling section 0.2 m upstream and downstream of flow meter
