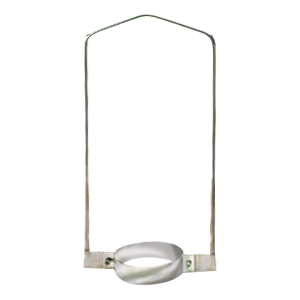

Support bracket

Support bracket

for Motor MA II and ME II

Version:

Preis anfragen
Please enter these characters in the following text field.

Mit * gekennzeichnete Felder sind Pflichtfelder.
  • 0211-047
  • op verzoek
Description: The carrying handle makes it easier to lift the pump out of or immerse it in...more
Product information "Support bracket"

Version: for Motor MA II and ME II


voor Motor MA II en ME II

Description:

The carrying handle makes it easier to lift the pump out of or immerse it in the drums or containers. In the case of an explosion-proof drive motor, the explosion protection switch is attached to the support bracket

  • for Motor MA II / ME II / B4/GT / three-phase motor / single-phase motor / three-phase motor for reduction gears

Features & Advantages

  • No heavy lifting necessary
  • Facilitates lifting out or submersing the motor either with or without Pump tube
Technical data
▼ EIGENSCHAFTEN | PROPERTIES | EIGENSCHAPPEN ▼
Produktgruppe: Fasspumpen / Containerpumpen, Exzenterschneckenpumpen
Accessories group: Mounts / Suspensions

* The maximum flow rate is a value determined by means of a test bench and measured with water at a medium temperature of approx. 20 °C. The measurement is carried out at the pressure joint of the pump, without hose, nozzle or flow meter. The achievable flow rate in use is lower and depends on the individual application, the liquid properties and the configuration of the pump. The max. delivery head also depends on the pump design, motor and fluid. The viscosity values are determined with oil.

** Test assembly: Medium water / diesel, flow in preferred direction, settling section 0.2 m upstream and downstream of flow meter
