Lutz Akku-Motor für Fasspumpe B1 Battery | stufenlos regelbar
PREIS ANFRAGEN

Mit * gekennzeichnete Felder sind Pflichtfelder.
LUTZ PUMPS, INC. | USA
Family business since 1954
info@lutzpumpsamerica.com
800 8 43 39 01 (toll free)

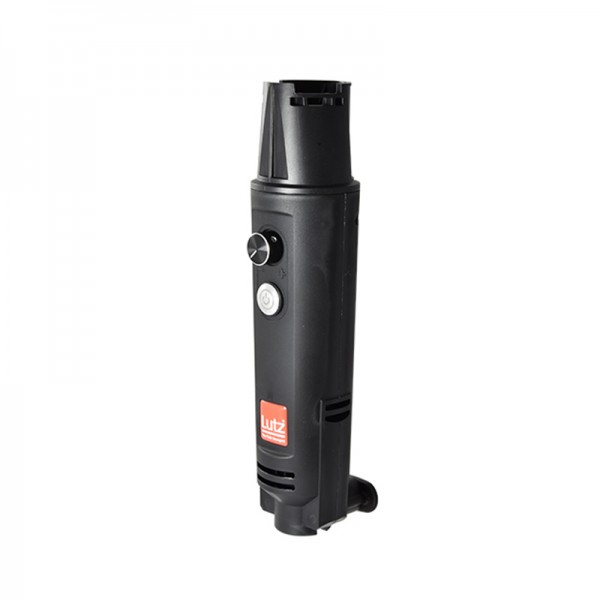

Battery Motor

Battery Motor

suitable for B1 Battery

Preis anfragen

Mit * gekennzeichnete Felder sind Pflichtfelder.
  • US-0001-115
  • upon request
Description: The battery motor B1 Battery is suitable for low viscosity, aqueous to...more
Product information "Battery Motor"

Description:

The battery motor B1 Battery is suitable for low viscosity, aqueous to slightly viscous media in laboratory and technical applications. Perfectly suited for the removal or decanting of smallest quantities.

  • Exchangeable, powerful rechargeable battery with Li-Ions
  • Battery life 25 min at maximum speed
  • 1 battery charge empties approx. 2 x 200 litre containers

Features & Advantages

  • Wear-free, particularly low-noise BLDC- drive systemMotor
  • Easy disassembly due to quick release fastener
  • Infinitely variable
  • Suitable for smallest quantities
Technical data
▼ EIGENSCHAFTEN | PROPERTIES | EIGENSCHAPPEN ▼
Type of drive: Battery
Output (W): 70
Voltage: 10,8
Capacity (Ah): 1,5

* The maximum flow rate is a value determined by means of a test bench and measured with water at a medium temperature of approx. 20 °C. The measurement is carried out at the pressure joint of the pump, without hose, nozzle or flow meter. The achievable flow rate in use is lower and depends on the individual application, the liquid properties and the configuration of the pump. The max. delivery head also depends on the pump design, motor and fluid. The viscosity values are determined with oil.

** Test assembly: Medium water / diesel, flow in preferred direction, settling section 0.2 m upstream and downstream of flow meter
