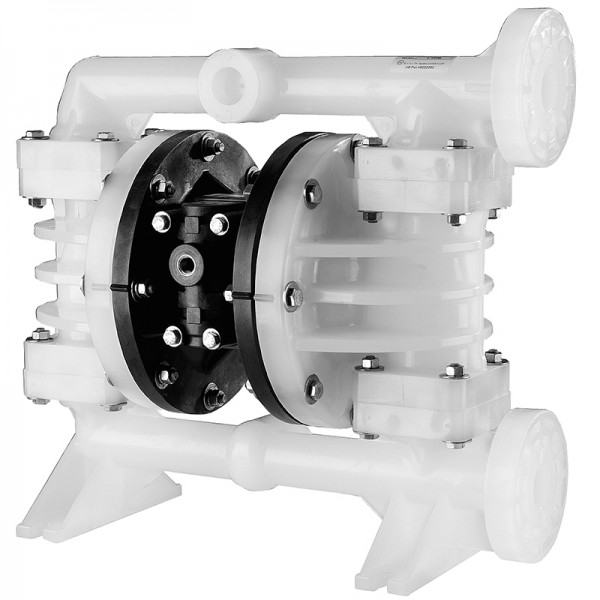

Double diaphragm pump 1" made of PP (bolted version)

Preis anfragen
Please enter these characters in the following text field.

Mit * gekennzeichnete Felder sind Pflichtfelder.
  • US-LJPE-B1
Suitable for handling neutral and aggressive liquids Application examples: Suitable for...more
Product information "Double diaphragm pump 1" made of PP (bolted version)"

Suitable for handling neutral and aggressive liquids

Application examples:
Suitable for transfer from drums and containers, transfer of corrosive solutions and chemicals

Features:

  • Absolutely free of oil
  • Absolutely safe to run dry
  • Self-priming, even dry
  • Centre block made of corrosion-free plastic
  • Just a few components, easily accessible
  • Flow rate up to 41.2 GPM

Benefits:

  • No failure of the pump due to lack of lubrication
  • No contamination of the environment or of the product itself by oil vapour
  • Gentle pumping of thick-bodied, contaminated and abrasive liquids
  • No direct chemical attack of the air-conducting parts in case of membrane rupture
  • Easy maintenance without special tools
Technical data
▼ WERKSTOFFE | MATERIAL | MATERIAAL ▼
Housing Material: Polypropylene glass fibre reinforced (PP)

* The maximum flow rate is a value determined by means of a test bench and measured with water at a medium temperature of approx. 20 °C. The measurement is carried out at the pressure joint of the pump, without hose, nozzle or flow meter. The achievable flow rate in use is lower and depends on the individual application, the liquid properties and the configuration of the pump. The max. delivery head also depends on the pump design, motor and fluid. The viscosity values are determined with oil.

** Test assembly: Medium water / diesel, flow in preferred direction, settling section 0.2 m upstream and downstream of flow meter
