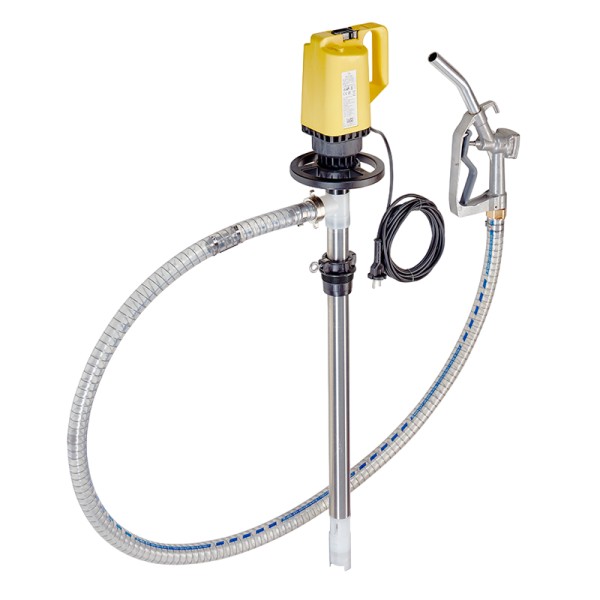

Pump Set - Mineral oils

for oils and lubricants

Immersion depth:

Motor:

Preis anfragen
Please enter these characters in the following text field.

Mit * gekennzeichnete Felder sind Pflichtfelder.
  • US-0205-301-1
  • upon request
  • not suitable for the Ex- area
Description: The Pump Set is suitable for low viscosity, aggressive and non-flammable...more
Product information "Pump Set - Mineral oils"

Motor: MI 4 - 500W, 230V
Immersion depth: 1000 mm (sealless)


Description:

The Pump Set is suitable for low viscosity, aggressive and non-flammable media. Perfectly suited for the removal or transfer of mineral oils.

  • Media examples: Diesel, heating oil, hydraulic oil, machine oil and engine oil etc.
  • Pump tube equipped with Lutz original hand wheel
  • Suitable for filling or transferring alternative fuels

Features & advantages

  • Optionally with electric or compressed air drive
  • No lubricants and therefore no contamination of the pumped medium by lubricants
  • Optimized Drum emptying
  • Universally resistant ETFE shaft bearings
  • Maintenance without special tools
  • Seal modules of the seal-less (SL) pump can be replaced
Technical data
▼ MEDIUM ▼
Suitable media: Motoröl, Maschinenöl, Hydrauliköl, Heizöl, Diesel (<40°C)
▼ WERKSTOFFE | MATERIAL | MATERIAAL ▼
Pump tube (material): Alu (Aluminium)
Impeller (material): ETFE (ethylene-tetrafluorethylene copolymer)
Static seal (material): no seals in contact with the medium
Mechanical seal (material): no seals in contact with the medium
Bearing (material): ETFE
Drive shaft (material): Edelstahl (1.4571)
▼ FÖRDERDATEN | OPERATING DATA | SPECIFICATIES ▼
Flow rate (up to max. GPM)*: 23, 25
Flow rate with Nozzle: 15,9
delivery head (up to max. ft)*: 52 , 69
Temperature of medium (max °F): 212
density (up to kg/dm³): 1.4, 2.8
Operating pressure (max. psi): 87
Viscosity (up to max. cps)*: 760 , 1000
▼ PUMPWERK | PUMP TUBE | POMPWERK ▼
Type of impeller: Radial-flow impeller
Seal type: Sealless (SL)
Immersion length: from 39" (1000 mm), from 47" (1200 mm)
Immersion tube diameter (up to mm): 1.6
Thread (inch) outside: 1 1/4"
▼ SCHLAUCH | HOSE | SLANG ▼
Schlauchlänge (mm): 78
▼ EIGENSCHAFTEN | PROPERTIES | EIGENSCHAPPEN ▼
Type of drive: Electric, Compressed air
Output (W): 640, 1000
Voltage: 120
Frequency (Hz): 60
Version: Komfortgriff

* The maximum flow rate is a value determined by means of a test bench and measured with water at a medium temperature of approx. 20 °C. The measurement is carried out at the pressure joint of the pump, without hose, nozzle or flow meter. The achievable flow rate in use is lower and depends on the individual application, the liquid properties and the configuration of the pump. The max. delivery head also depends on the pump design, motor and fluid. The viscosity values are determined with oil.

** Test assembly: Medium water / diesel, flow in preferred direction, settling section 0.2 m upstream and downstream of flow meter
