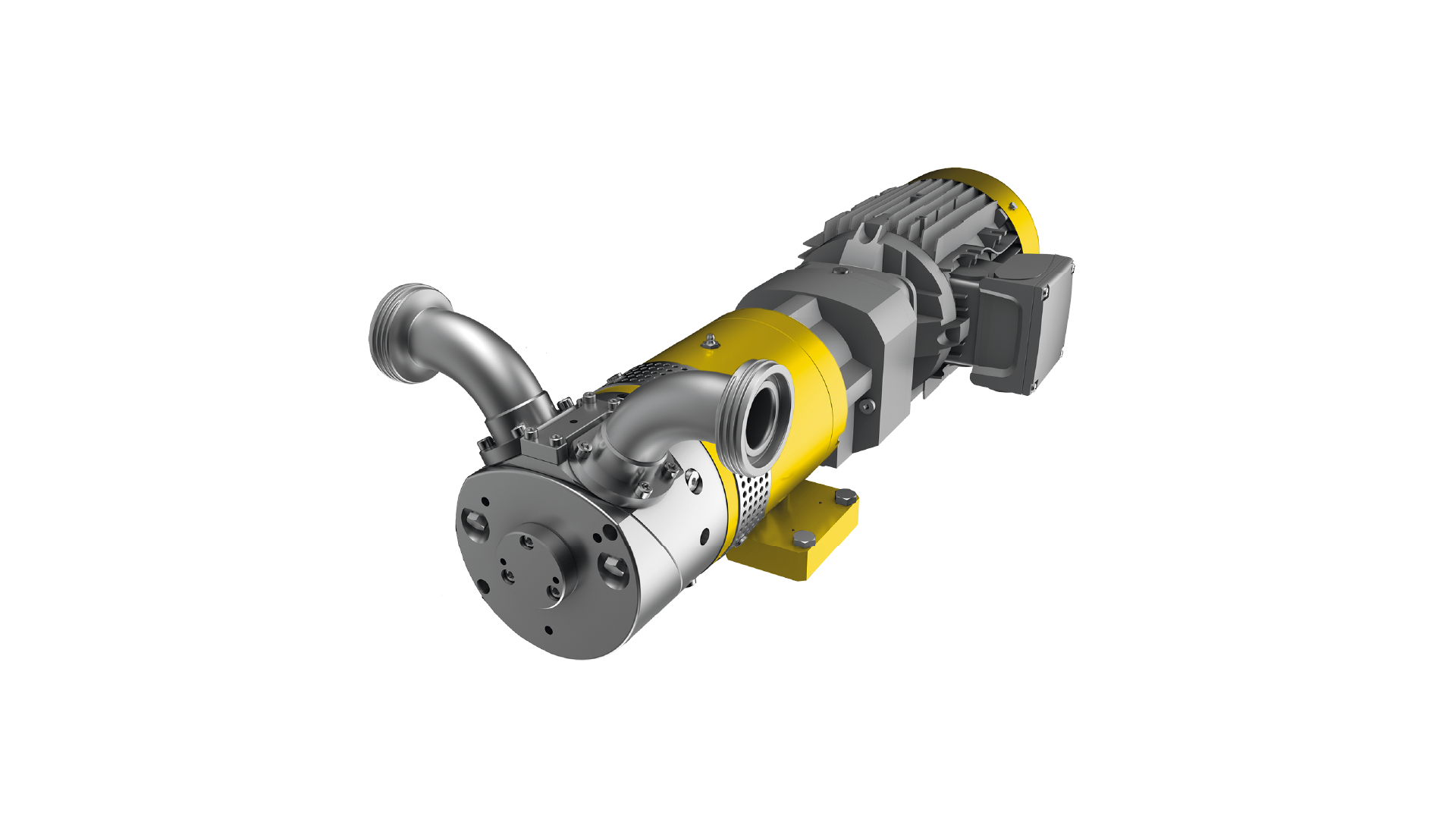

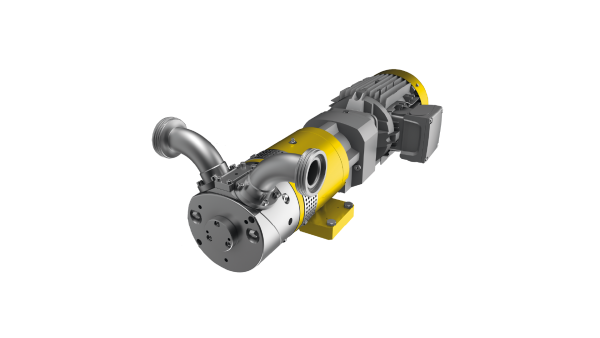

Our latest generation of Lutz wobble ring pumps has been specially developed to gently pump of a range of highly viscous, solid-containing and foaming media ranging from paints, sealants and grease with a viscosity of up to 1,000,000 mPas.
Our pumps achieve a flow rate of up to 30,000 litres per hour, with extremely smooth and energy-efficient operation and minimal pulsation.
Seamless integration of the wobble plate pumps into existing process landscapes is straightforward. The pumps also impress with their reliability, ease of cleaning and low maintenance requirements – without the need for time-consuming dismantling.
Our wobble plate pumps are used in various industries such as paint and coatings, sealants and adhesives, pharmaceuticals, cosmetics, oil and food.
Product overview: Three models available as standard, can be customised on request
The entry-level version: Wobble plate pump TR015
The TR 015 offers you an entrance into the world of wobble plate pumps. With a flow rate of 6,000 l/h, it is suitable for small to medium-sized applications.
- Delivery pressure: up to 10 bar
- Flow rate (viscosity 1-5 mPas): up to 6,000 l/h
- Motor power: up to 3 kW
- Diameter: 150 mm
- Length: 316 mm (plus. motor and gear)
- Weight: 45 kg (incl. drive)
- Materials pump head: Stainless steel
- Material wobble plate: Plastic or metal
The middle class: Wobble plate pump TR030
The TR030 is the right choice for medium to large applications. The flow rate of this mid-range pump is 12,000 l/h.
- Delivery pressure: up to 15 bar
- Flow rate (viscosity 1-5 mPas): up to 12,000 l/h
- Motor power: up to 5.5 kW
- Diameter: 170 mm
- Length: 340 mm (plus. motor and gear)
- Weight: 90 kg (inc. drive)
- Materials pump head: Stainless steel
- Material wobble plate: Plastic or metal
The Goliath: TR080
The TR080 is the Goliath of our latest generation of wobble plate pumps. With a flow rate of up to 30,000 l/h, the pump is suitable for large industrial applications.
- Delivery pressure: up to 15 bar
- Flow rate (viscosity 1-5 mPas): up to 30,000 l/h
- Motor power: 7.5 kW
- Diameter: 210 mm
- Length: 440 mm (plus. motor and gear)
- Weight: 135 kg (inc. drive)
- Materials pump head: Stainless steel
- Material wobble plate: Plastic or metal
Standards and certificates
-
EC regulation 1935/2004
The parts in contact with the product comply with the requirements of EC regulation 1935/2004. The conformity of the stainless steels used is verified by certificates from the material manufacturers.
-
EU 10/2011
The compliance of all plastics used with the standard EU 10/2011 is ensured by manufacturer’s certificates.
-
ATEX
Our products comply with the requirements of ATEX approval and are approved for use in explosive atmospheres. This is confirmed by the following classifications:
- CE II II 2G Ex h IIB TX: suitable for use in explosive gas atmospheres
- CE II II 2D Ex h IIIC TX: suitable for use in explosive dust atmospheres.
The permissible operating temperature ranges are defined as follows: Ambient temperature (Ta): 0°C to +40°C. Media temperature (TM): 0°C to 110°C or 0°C to 205°C
-
FDA
Our products comply with FDA requirements and are approved for safe use in the food and pharmaceutical industries.
